Outdoor Kitchen Drawers and Doors: Sizing and Layout

The storage decision in an outdoor kitchen usually gets made after the island is framed. That is the one point in the build where changing it costs real money, because the cutouts are sized, the counter is templated, and the contractor has moved on to the next line item.

So make it before the framing. Here is what you are choosing between, what the standard sizes actually are, and where each piece belongs.

Standard sizes, and what actually fits

Outdoor cabinet components are sold by cutout size, not by the outside face. The number you give your contractor is the hole, and the manufacturer's spec sheet lists it for every unit. Common sizes run like this:

Component	Typical widths	What it holds
Single access door	14", 17", 20", 24"	Gas shut-off, grease tray access
Double access door	30", 33", 36", 42"	Under-grill access, bulk storage
Drawer unit, 2-drawer	17", 20", 30"	Tools, towels, foil
Drawer unit, 3-drawer	17", 20"	The same, one tier deeper

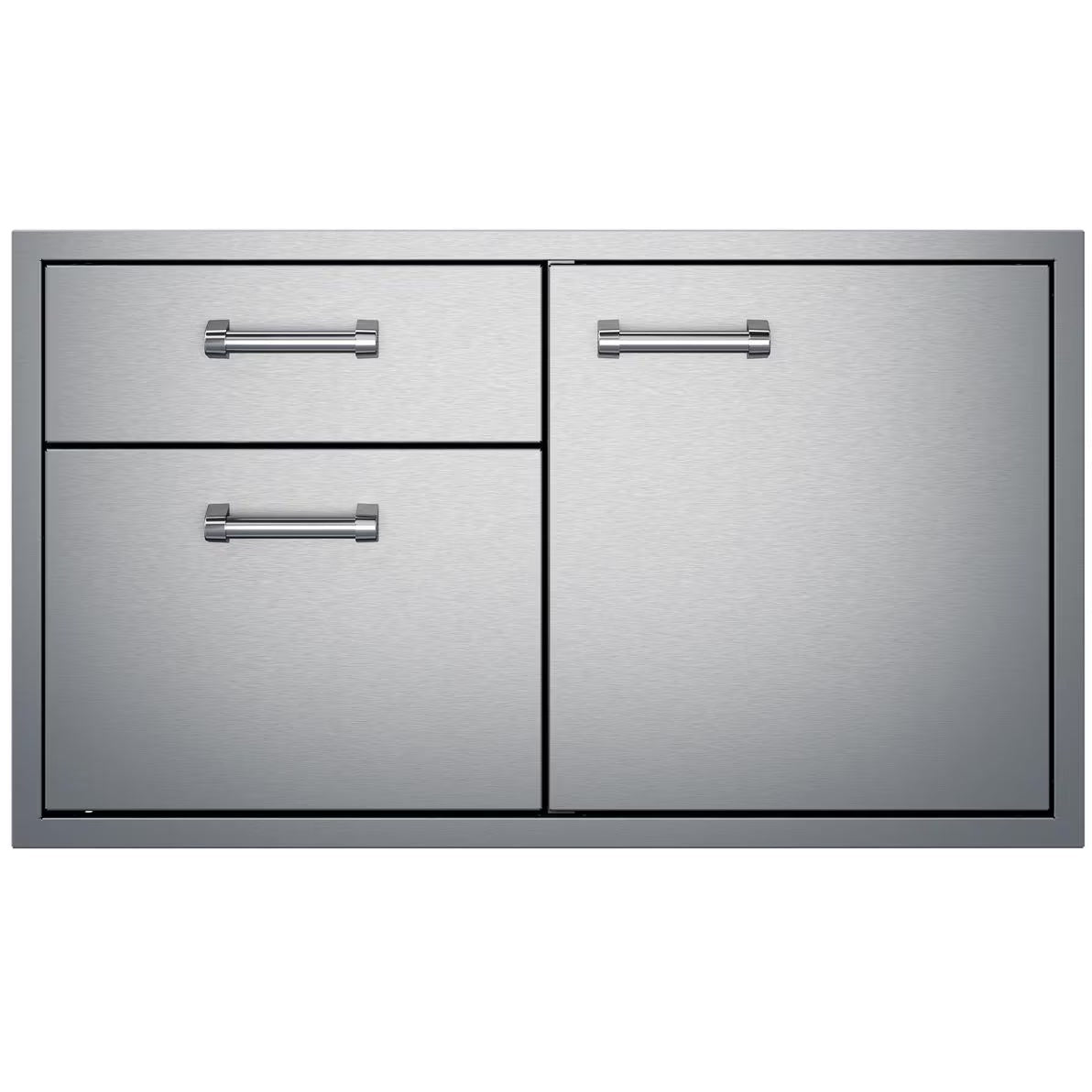

Door and drawer combo	30", 33", 36"	One opening, both jobs
Trash or propane pull-out	15", 20"	A bin, or a 20 lb tank

Two rules save most of the grief:

1. Order the components before the island is framed, and frame to the spec sheets. Framing first and shopping second is how people end up with a 31 inch hole and a 30 inch door.
2. Leave clearance for the swing. A door that opens into the grill cart position, or two drawers that collide at a corner, both look obvious on paper and both happen constantly.

Doors, drawers, or a combo unit?

They are not interchangeable, and the mix matters more than the count.

Access doors are the cheapest way to close a hole. They give you reach-in storage and, more importantly, access: to the gas shut-off, the grease tray, the back of the side burner. Every appliance that needs service needs a door near it.

Drawers are for the things you actually touch while cooking. Tongs, thermometer, towels, foil. If you have ever crouched and reached into a dark cabinet with a brisket on the grate, you already know why drawers beat doors at the cook station.

Combo units put a drawer above a door in one cutout. On a small island they are the right call, one opening, both jobs. On a large island they are a compromise; separate components give you more of each.

Pull-outs are single-purpose: a trash bin or a propane tank on a sliding tray. If the grill runs on propane, put the tank on a pull-out behind a vented door, not loose in a cabinet. The tank has to come out for refills, and the enclosure needs airflow either way.

Layout: what goes where

Think of it as three zones.

At the grill: a drawer unit within arm's reach of the hood handle, and an access door directly below the grill head for the gas connection and grease tray. This is the non-negotiable pair.

Away from heat: trash pull-out, propane pull-out, and anything plastic. Keep them at least one cabinet bay away from the grill and the side burner. Heat is hard on bins, worse on tank valves.

At the prep run: the rest of the doors and drawers, plus whatever the sink needs. If there is a fridge, it gets its own cutout spec and its own clearance, and it also prefers distance from the grill.

While you are placing storage, place the services. The gas stub should land inside the cabinet under the grill with a shut-off you can reach through the access door. Electrical for a fridge or lights lands away from the grease path. Decide both before the trench is dug, not after.

Material and finish

Almost everything worth buying here is stainless, but the grade matters:

• 304 stainless is the standard. It handles weather, heat and grease, and it is what most quality doors and drawers are made from.
• 316 stainless is the coastal grade. It resists salt air that will eventually freckle 304. If the kitchen is within a mile or two of salt water, the upcharge is cheaper than the regret.
• Powder-coated finishes buy you color and hide fingerprints. Fine product, one caveat: a chip in the coating near salt air becomes a rust site, so inland installs get more life out of them.

And a practical note from the service side: hinges and drawer slides fail before panels do. When you compare two similar units, open them. The one with the heavier slides and the adjustable, replaceable hinges is the better buy, whatever the panel gauge says.

Frequently asked questions

What is the standard counter height for an outdoor kitchen?
36 inches finished, the same as an indoor kitchen. Bar seating sections step up to 42 inches.

Can a drawer unit go directly under the grill head?
Under most drop-in grills, no. The grill needs open access below for gas and grease, which is why the standard pairing is an access door under the grill and the drawers beside it. Some manufacturers make insulated jackets and rated under-grill storage; check the spec sheet for your grill head before planning storage there.

Does a propane tank need a vented door?
Yes. Propane is heavier than air, and an enclosed tank compartment needs venting at the bottom of the enclosure. Use a vented door or a tank drawer designed for the job, and check your local code, because many jurisdictions have specific requirements for enclosed tanks.

Weatherproof or weather-resistant?
Assume weather-resistant, whatever the listing says. Sealed drawer units keep rain out of a normal storm; none of them are submarines. Anything that would be ruined by one wet weekend, keep indoors, and give the island a cover if it faces open weather.

Planning the island

Sizing storage is easier with the actual spec sheets in front of you. Browse outdoor kitchen storage from Haven and Wildfire, or start from the built-in grills the island is being designed around. Replacement hinges, slides and hardware live in grill parts.

If you have a drawing, call us on 1 (866) 850-3450 before anything is framed. We check island plans over the phone, and ten minutes now is cheaper than a re-poured counter later. Free shipping on orders over $75.
