Replacement Grill Grates: Material, Fit and When to Replace

You run a scraper down the bars and a coin-sized piece of black coating lifts off with it. What is underneath is orange. That is not dirt, and no amount of scrubbing brings it back.

Grates are the part owners tolerate longest, because a bad grate still cooks. It just cooks unevenly, sticks, and sheds. Shopping for replacement grill grates comes down to two decisions: which material you want this time, and whether what you order will drop into your firebox.

Restore it, or replace it

Three faults are worth fixing. Baked-on carbon: run the grill hot for fifteen minutes and scrape while it is still warm. Surface rust on bare cast iron: scour it back to grey metal, dry it, re-season it. Dull, sticky cast iron is not damage, it is a grate asking for oil.

Four faults mean the grate is finished:

• A coating that is chipping or flaking. Once the glaze is broken, rust starts at the chip and creeps underneath, lifting more coating as it goes. Nothing stops that, and the flakes end up on food.
• Rods pitted thin, a bar snapped, or a frame sagging enough to rock food.
• Cast iron cracked through. It will break the rest of the way mid-cook.
• Rust that returns a cook or two after you clean it. The metal is spent.

If you are not certain the grates are the worst thing on the grill, work through which grill parts wear out first first. Flaking coatings, warped heat plates and tired burners all surface as one complaint: uneven heat and food that sticks.

Cast iron vs stainless steel grill grates

Four materials cover almost everything sold, and they fail differently.

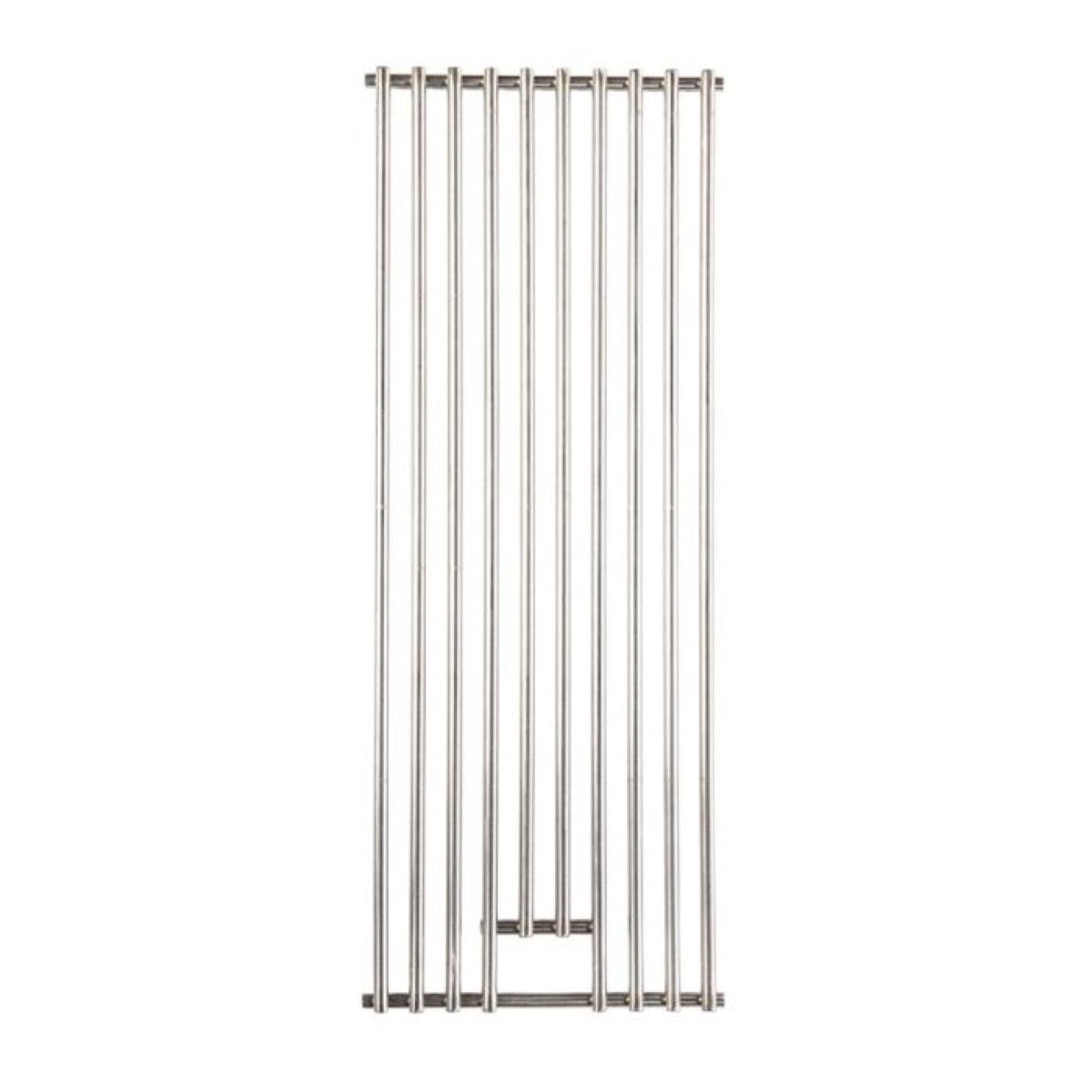

Stainless steel rod. No coating, so nothing to chip. What varies is the rod. A heavy solid rod holds enough heat to mark a steak and usually outlasts the grill it came on. A thin hollow one heats fast, gives that heat up the moment food lands, and pits within a few seasons. If a listing quotes a rod diameter or a set weight, that number tells you more than the word "stainless" does.

Bare cast iron. The best heat retention you can buy, and the reason serious sear marks exist. It also rusts if you leave it wet overnight. Oil it, heat it until it stops smoking, repeat whenever it looks grey and dry. If you will not do that, do not buy it.

Porcelain-coated cast iron. Cast iron heat under a glaze that does the rust-proofing for you, and genuinely non-stick while the glaze is intact. That last clause is the whole story. The coating is glass. Drop a grate on a patio, or attack it with a wire brush, and it chips, and then it rusts from the chip inward. There is no repair, which is why plenty of grates get replaced while the metal under them is still sound.

Porcelain-coated steel. Lightest and cheapest, common on entry-level grills. Same chipping failure with less metal underneath, so the shortest life of the four.

If you cook hot and fast and want sear marks, cast iron. If you want to stop thinking about grates, heavy stainless rod. Porcelain grill grates are a fair compromise as long as you treat the first chip as the beginning of the end rather than a cosmetic annoyance.

How to measure for replacement grill grates

Grates sell two ways, by model number and by dimensions. The dimension route needs four numbers, taken with the grill cool and the old grates out on a bench.

1. The opening. Left to right and front to back inside the firebox, at the rails the grates rest on.
2. One panel. Width and depth of a single section, not the whole set.
3. The count. How many panels fill the opening.
4. The edges. How the panel sits: a flat lip on a rail, hooked ends, a raised handle bar, or a notch cut to clear an electrode or a rotisserie bracket.

One and three are the numbers people skip, and they are the expensive ones. Two panels at 17 by 23 inches are not the same purchase as three at 11.25 by 23, and a listing priced per panel will quietly leave you a third short.

Measure to the sixteenth of an inch. A grate half an inch narrow rattles every time you move a burger. A grate a quarter inch wide will not go in at all.

OEM by model number, universal by dimension

The model number wins whenever you can find it, usually on a tag inside a cabinet door, on the back of the firebox, or under a side shelf. With it you order the part the grill was built around and the fit question disappears.

Go universal when the grill is out of warranty, the model is discontinued, and the panels are plain rectangles resting on rails. Grates are the friendliest part on the grill for universal fitment, because nothing flows through them: no orifice to seat, no leak path to get wrong. If the dimensions match, it works.

Go OEM when the grate carries a feature: a notch around an electrode, a hinged section over a smoker box, a sear zone insert, or hooked ends that engage one specific rail. Go OEM too if the grill is still under warranty.

Same call as choosing between a universal and an OEM burner, with the stakes lowered. Measure first either way. Get a burner wrong and you have a gas problem. Get a grate wrong and you have a rattle.

Fitting them, and making the new set last

There is nothing to fit. Grates lift out and drop in on a cool grill, no tools and no gas, which makes this the easiest part on the machine to replace. Do two things while the firebox is open: clear the heat plates or flavorizer bars and the grease tray underneath, and check the rails the grates sit on. Rust down there will collapse a new set as happily as it collapsed the old one.

Season bare cast iron before its first cook: a thin coat of high smoke point oil over every surface, burners on medium with the hood down until it stops smoking. Repeat once, and again each spring.

Then four habits decide whether a set lasts one season or several: scrape while the grill is still warm, use a nylon brush or a coil scraper on anything coated, never hose down a hot grate, and keep a cover on it. Water standing on grates overnight does more damage than a summer of cooking.

Frequently asked questions

How long should grill grates last?
Several seasons at least, and heavy stainless or well-kept cast iron will outlive the grill. Coated grates run on a shorter clock, because their life ends at the first chip nobody noticed rather than at a wear limit.

Can I use a wire brush on porcelain grates?
Better not. Wire chips glaze, and loose bristles are a real hazard. A nylon brush or a coil-style scraper cleans just as well.

Are heavier grates always better?
For searing, mostly: mass is what marks a steak instead of steaming it. The trade is a longer preheat and a heavier lift at cleaning time.

Getting the grates

Cooking grates sit with the rest of the grill replacement parts, and Weber owners can go straight to Weber grill parts. The range is wide: a stainless cooking grate for a Bull is around $90, an Artisan sear zone grate is $429, most sets land between.

Free shipping on orders over $75. If the model tag has gone, measure the opening and one panel, count the panels, and call 1 (866) 850-3450. We will match it with you before you buy.
